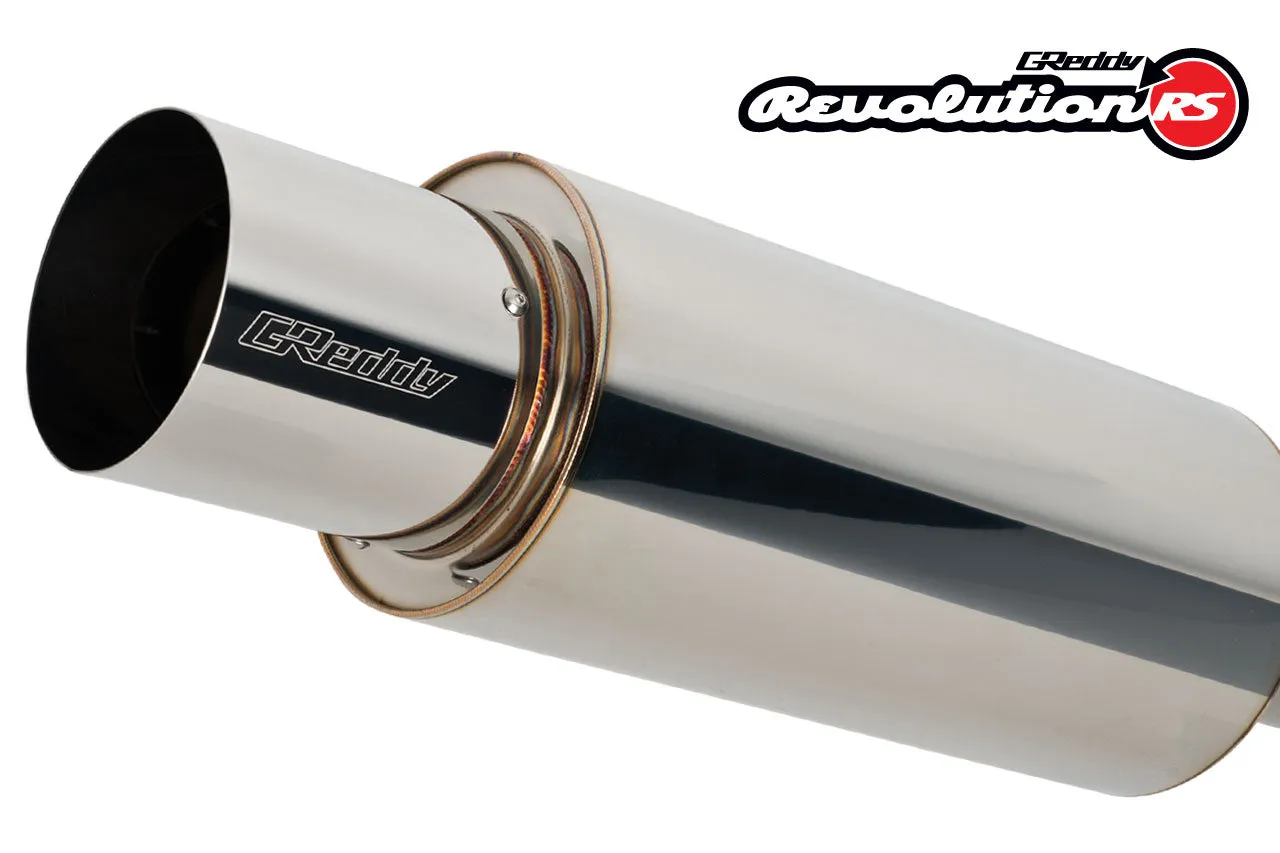

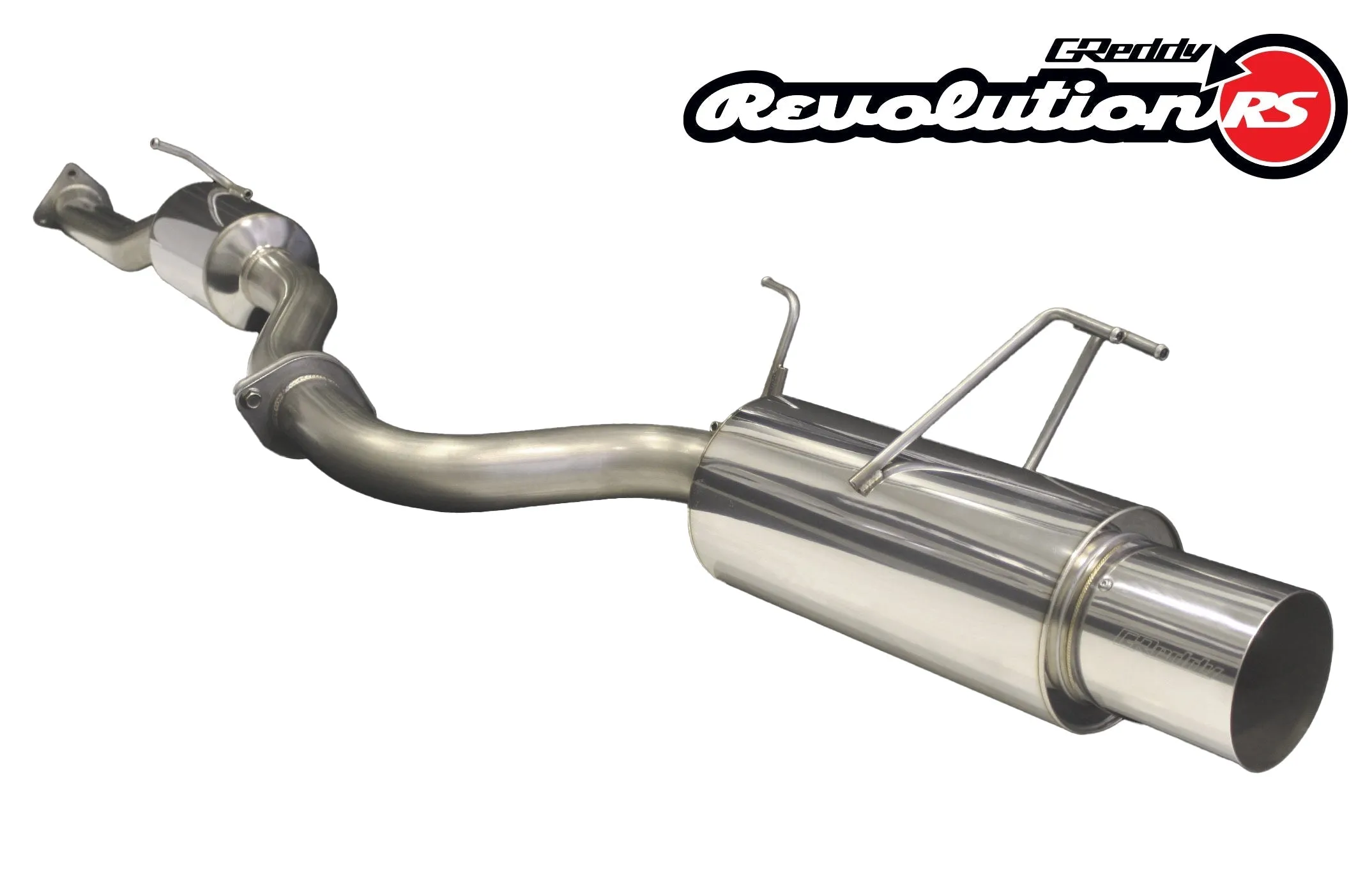

Experience top-notch performance and a striking aesthetic with the GReddy Revolution RS Exhaust Systems - designed and built by industry experts for an expertly-crafted, application-specific product. Our revolutionary approach focuses on optimizing exhaust flow, sound, and the internal straight-through structure of the muffler and resonator, setting us apart from cheap imitations. We use high-quality, high-temperature resistant materials and precision TIG-welding on premium 304 stainless steel for unbeatable quality at an affordable price.

  A particular exhaust system listed may be in stock, but is not available
to be ordered currently on ShopGReddy.com.
To check stock and purchase, please contact an

(click for more details...)

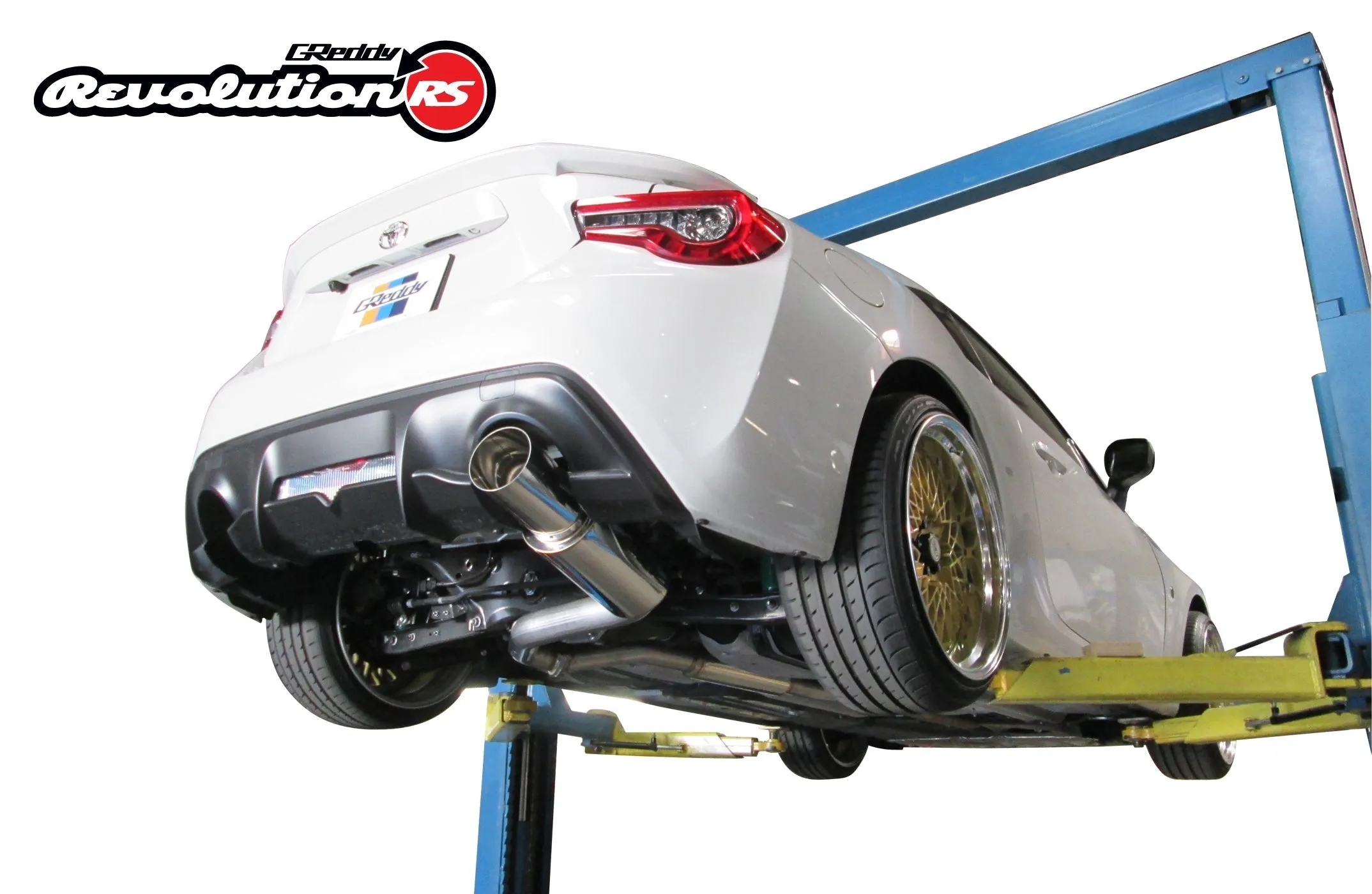

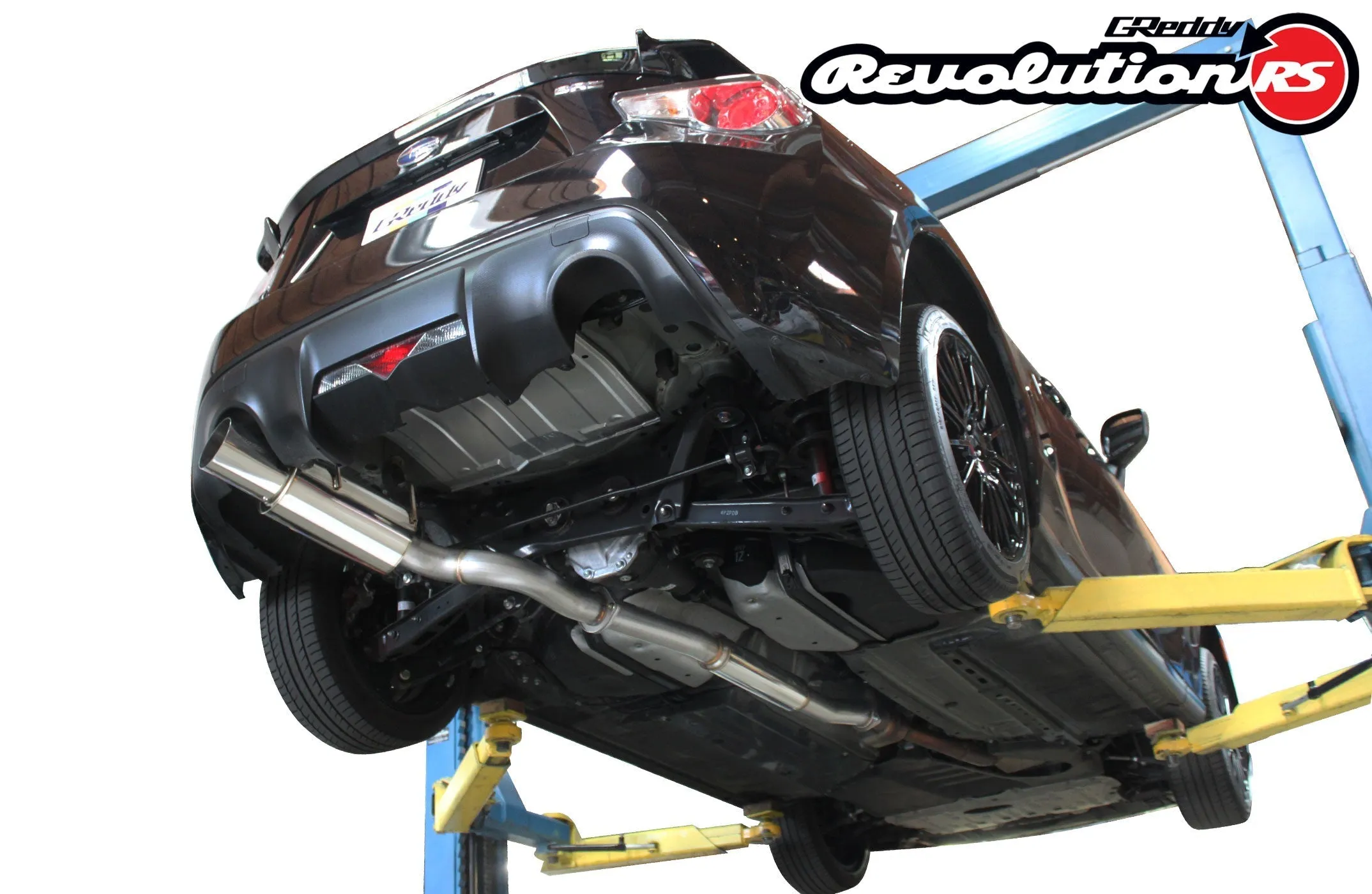

Chassis:   ZN6
Engine:   4U-GSE (FA20)
Type:   Cat-back exhaust with single sided muffler (left exit)
Number of pieces:  2pcs
Piping:   76 mm (3.0")
Tip:    115mm (4.5") x L 150 (5.9")
Gasket(s):    3.0" oval (qty: 1 included)
Note: * not compatible with 2017-20 models (see 10118107)

Chassis:  ZN6 Kouki (minor change)
Engine:  FA20
Type:   Cat-back exhaust with single sided muffler (right exit)
Number of pieces:  2pcs
Piping:    76 mm ( 3.0 in.)
Tip:   115 mm (4.5 ") x L185mm  (7.2")
Gasket(s):    3.0 " oval (qty: 1 included)
Note: * not compatible with 2013-16 models (see 10118102)

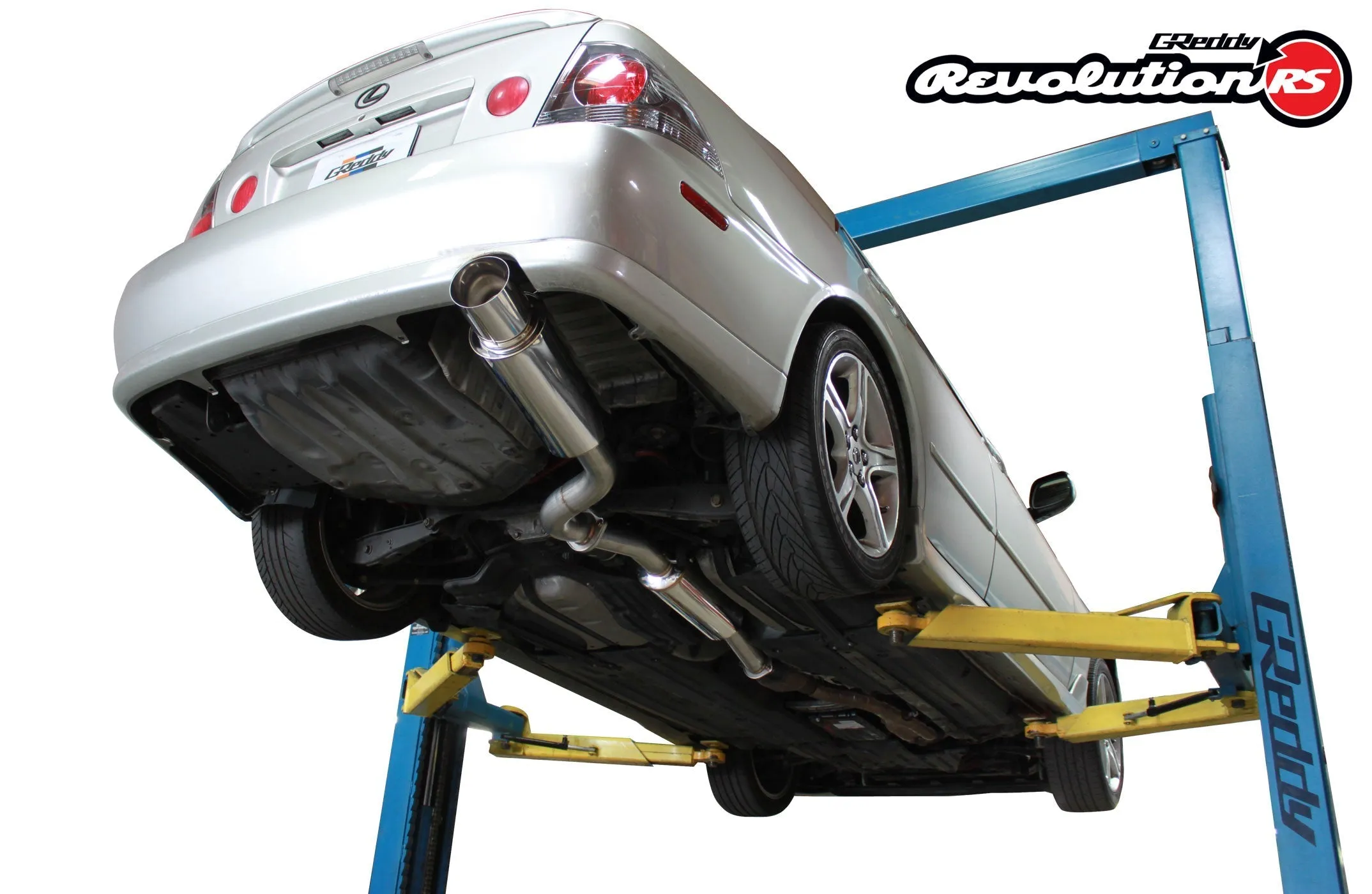

Chassis:   SXE10
Engine:   2JZ-GE
Type:   Cat-back system
Number of pieces:  2pcs
Piping:   76 mm (3.0")
Tip:   115 mm (4.5") x L 120mm (4.7")
Gasket(s):    3.0" oval (qty: 2 included)

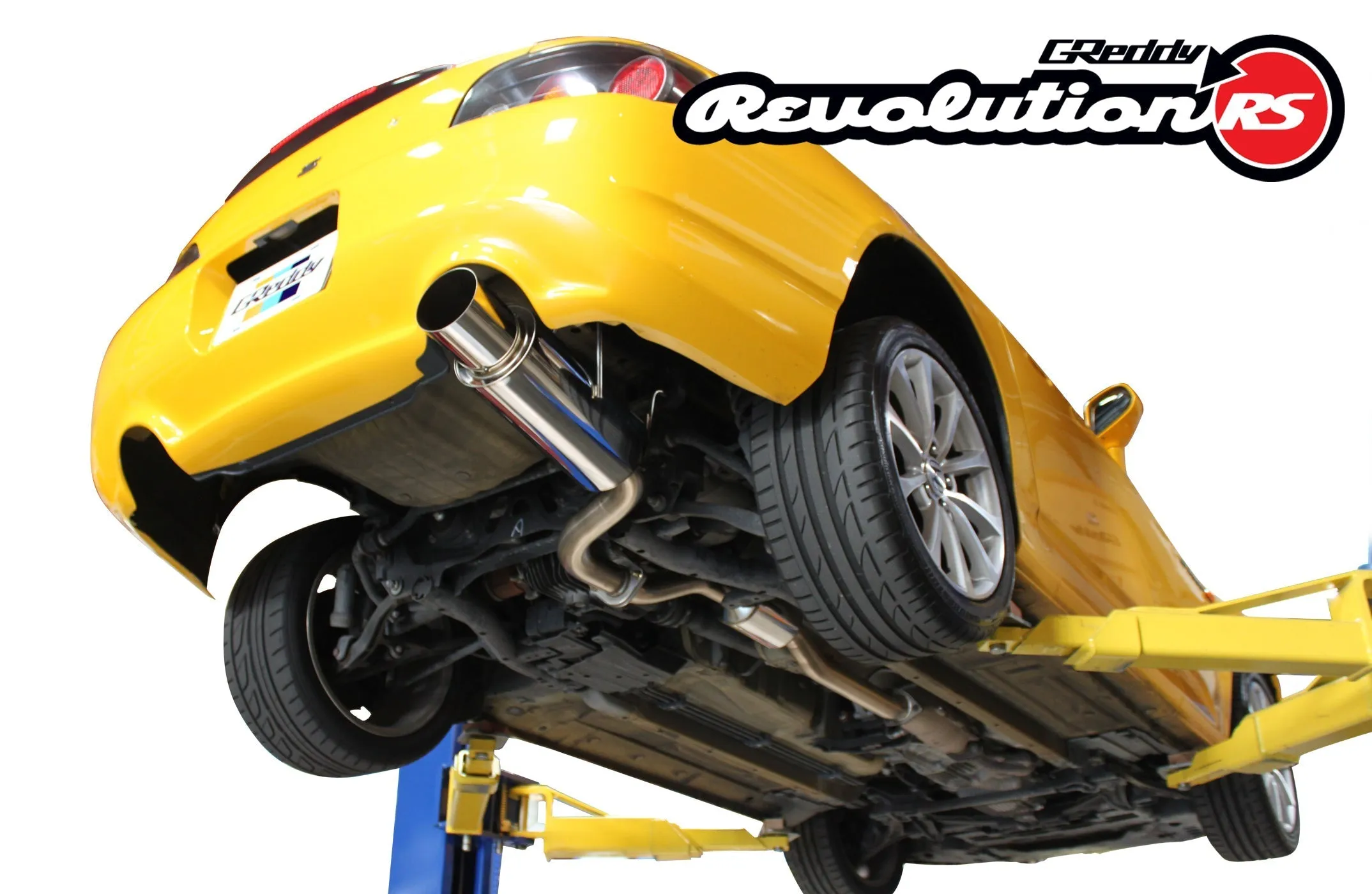

Chassis:   Z34
Engine:   VQ37HR
Type:   Cat-back exhaust with single sided muffler (left exit)
Number of pieces:  3pcs
Piping:   2x 63.5mm (2.5") - 76mm (3.0")
Tip:   115 mm (4.5") x L 170mm (6.7")
Gasket(s):    3.0" oval (qty: 2 included)

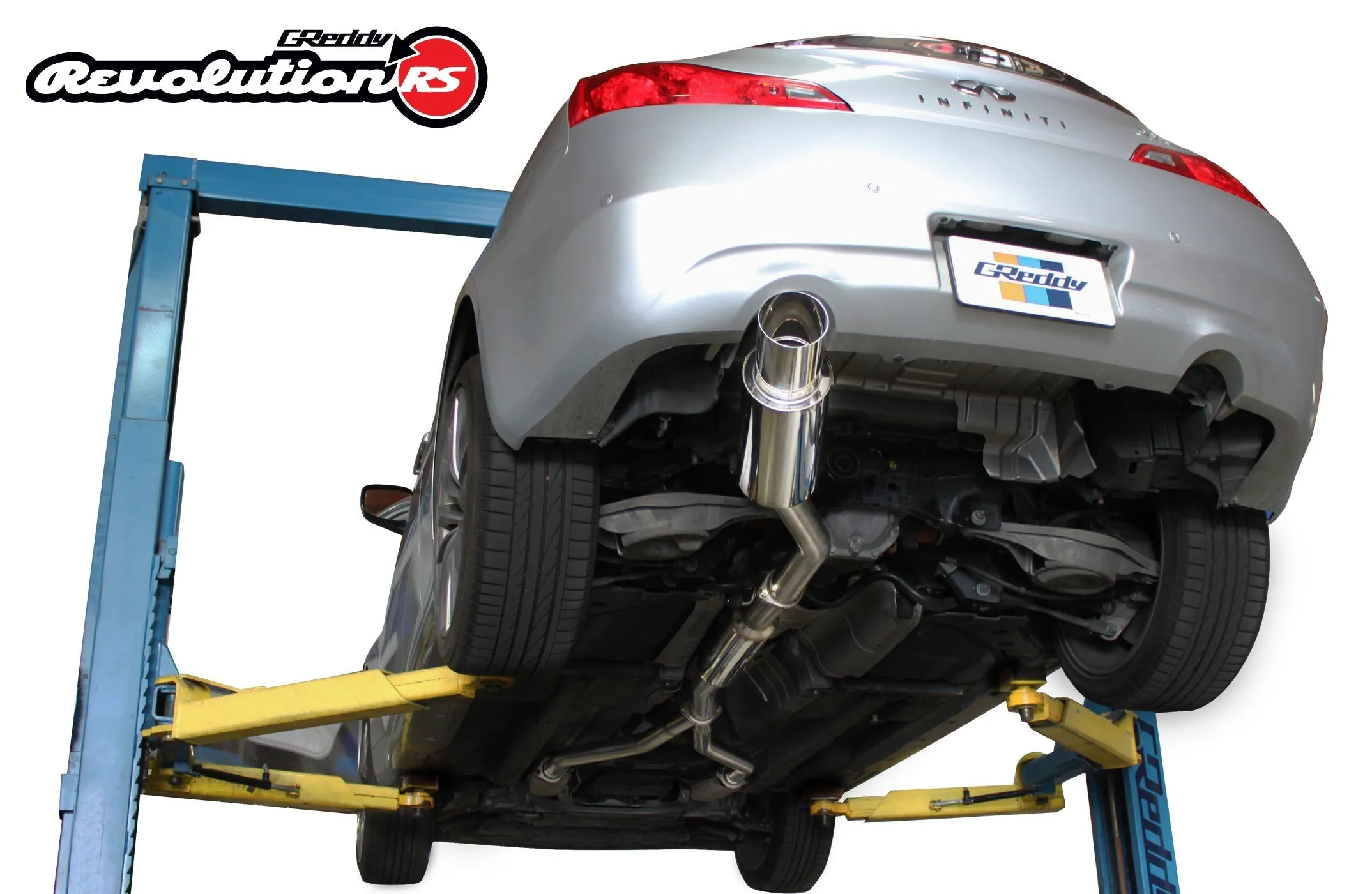

Chassis:   CPV36
Engine:   VQ37HR
Type:   Cat-back exhaust with single sided muffler
Number of pieces:  3pcs
Piping:   2x 63.5mm (2.5") - 76mm (3.0")
Tip:   115 mm (4.5") x L 150mm (5.9")
Gasket(s):    3.0" oval (qty: 2 included)
Resonator:   yes
HP:   11  hp  TRQ:   16  ft-lbs


Chassis:   JA32U
Engine:   4B12
Type:   axle-back system
Number of pieces:  1pc
Piping:   63.5mm (2.5")
Tip:   105mm (4.0") x L 120mm (4.7")  or non-removable (early model)
Gasket(s):    OEM  (qty: 0 included)
Resonator:   n/a
Weight:  9.5 lbs   (Stock weight  15.5 lbs)
Sound level:  92 dB(a)

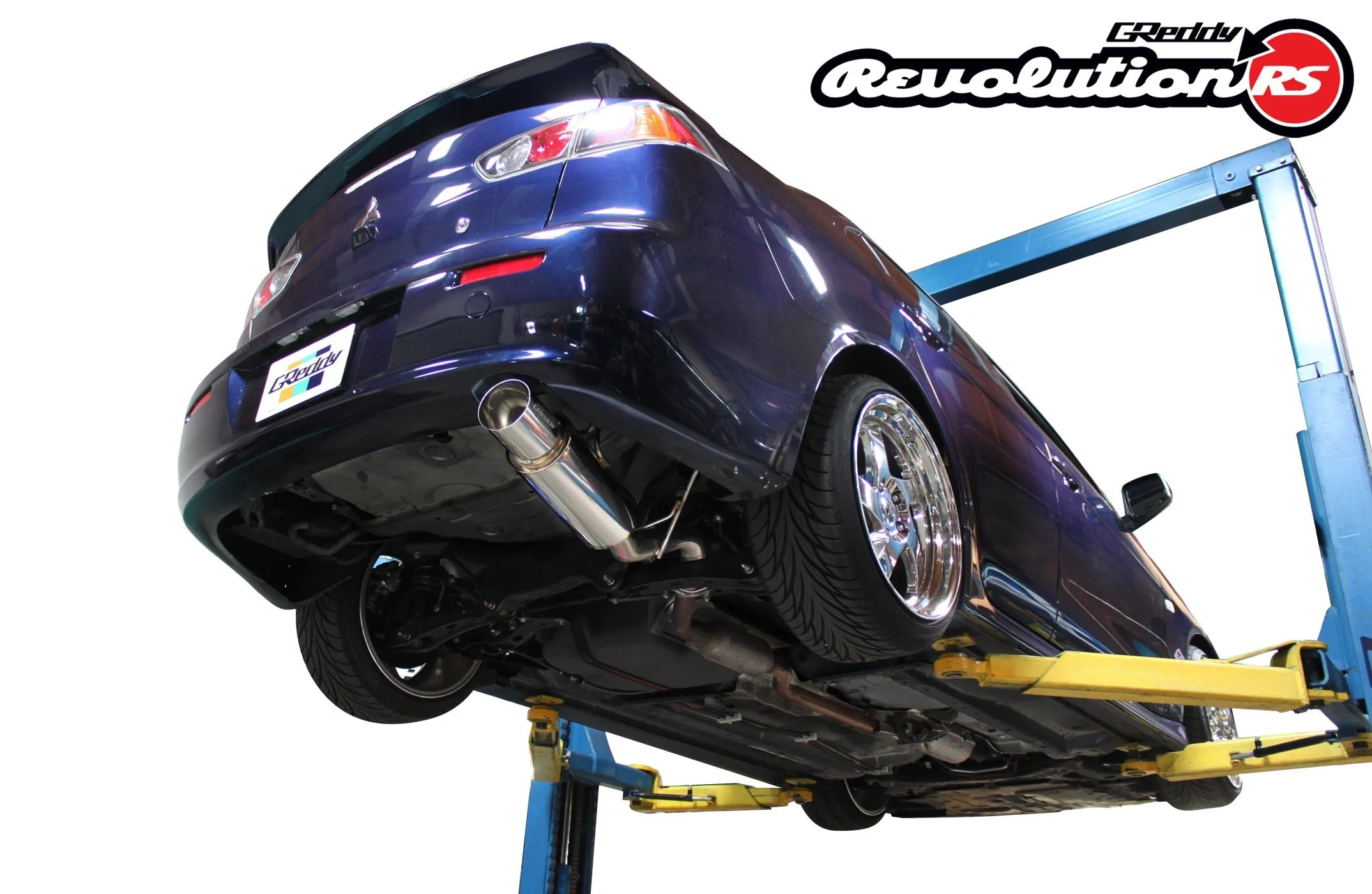

Chassis:   CZ4A
Engine:   4B11T
Type:   single-sided cat-back system (R)
Number of pieces:  2
Piping:   76mm (3")
Tip:   115mm (4.5")  x L170mm (6.7")   or non-removable (early model)
Gasket(s):    3" oval (qty: 1 included)
Resonator:   Yes
Notes: reuse factory gasket and bolts for the mid-pipe
Weight:  22.5 lbs   (-20.21lbs)
Sound level:  98 dB(a) @ 5250 RPM
  HP:   10.8 hp  TRQ:   3  ft-lbs

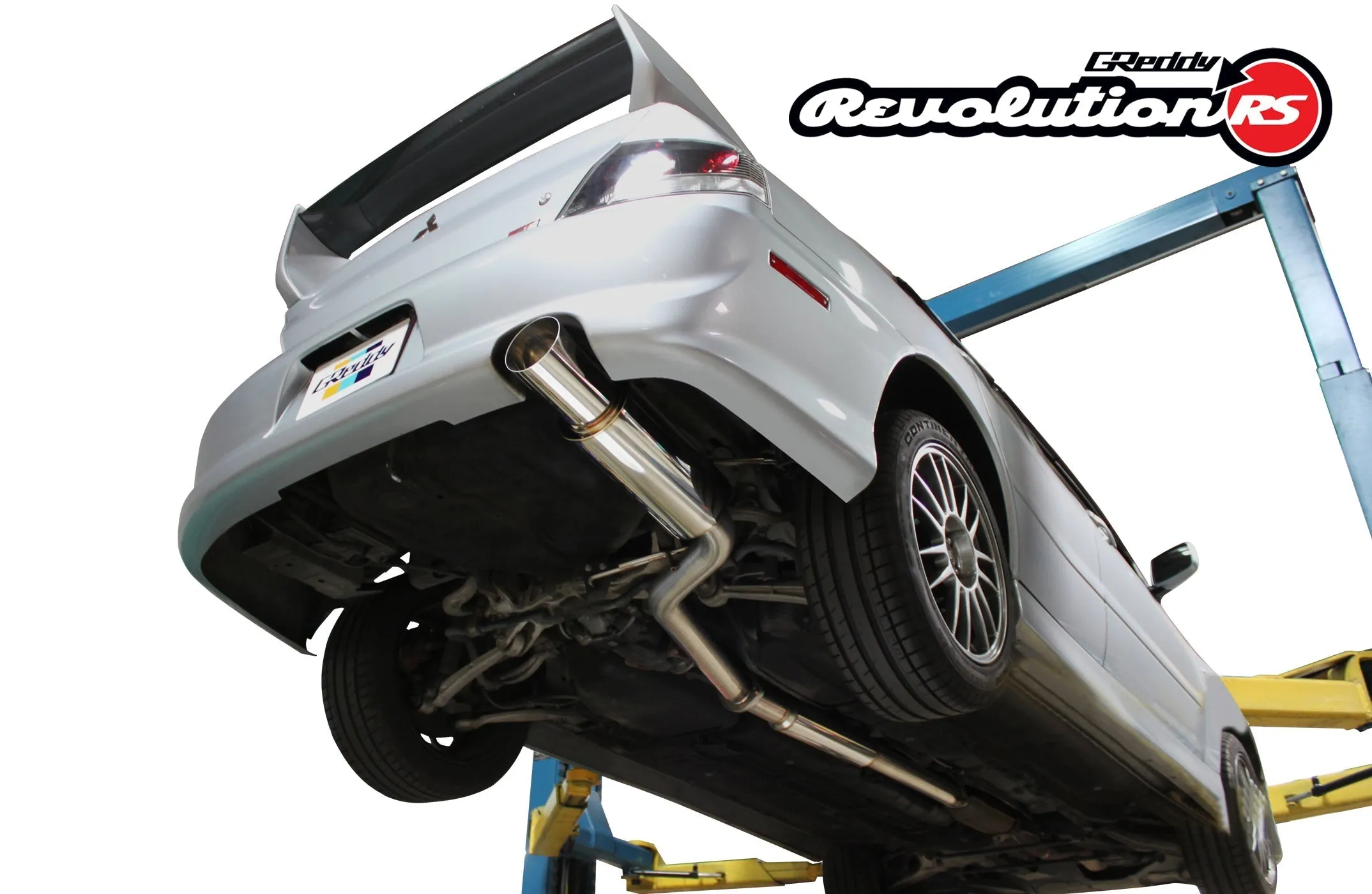

Chassis:   CT9A
Engine:   4G63T
Type:   cat-back system
Number of pieces:  2pcs
Piping:   76mm (3.0")
Tip:   115mm (4.5") x L 185mm (7.2")  or non-removable (early model)
Gasket(s):    3.0" oval (qty: 1 included)
Resonator:   Yes
Note: to reuse the OEM 02 sensor harness bracket, slight trimming is required.
Weight: 25.3 lbs  (Stock weight  34.7 lbs)
Sound level:  82 dB(a)


Chassis:  AP1 / AP2
Engine:  F20 / F22
Type:  Cat-back system
Number of pieces: 2pc
Piping:    63.5mm ( 2.5 in.)
Tip:   115mm (4.5")  x  L 150mm (5.9")
Gasket(s):    2.5" oval (qty: 1 included)
Resonator:   Yes
Note:  160xL350mm Revolution RS muffler canister
Weight:  TBA lbs   (Stock weight  52 lbs)
Sound level:  97dB(a)
HP:   5.8hp   TRQ:   4.9 ft-lbs

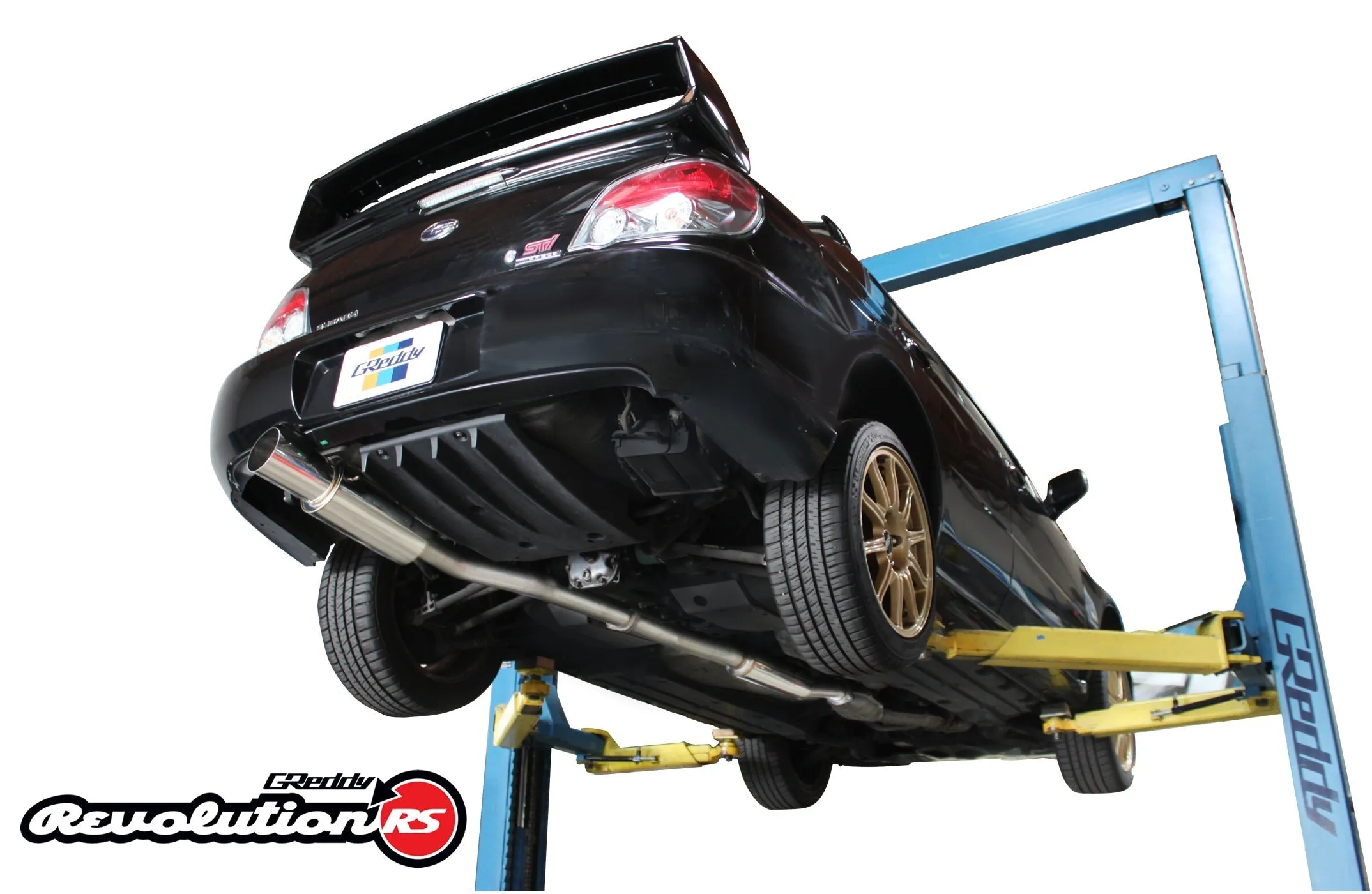

Chassis:  GDB
Engine:  EJ20 / EJ25
Type:   Cat-back system
Number of pieces: 2pcs
Piping:    76 mm ( 3.0 in.)
Tip:   115 mm (4.5 ") x L 170mm (6.7")
Gasket(s):    3.0" oval (qty: 1 included)
Resonator:   Yes
Weight:  24.2 lbs   (Stock weight  32.1 lbs)
Sound level:  102 dB(a)
HP:   8.33  hp   TRQ:   6.38  ft-lbs

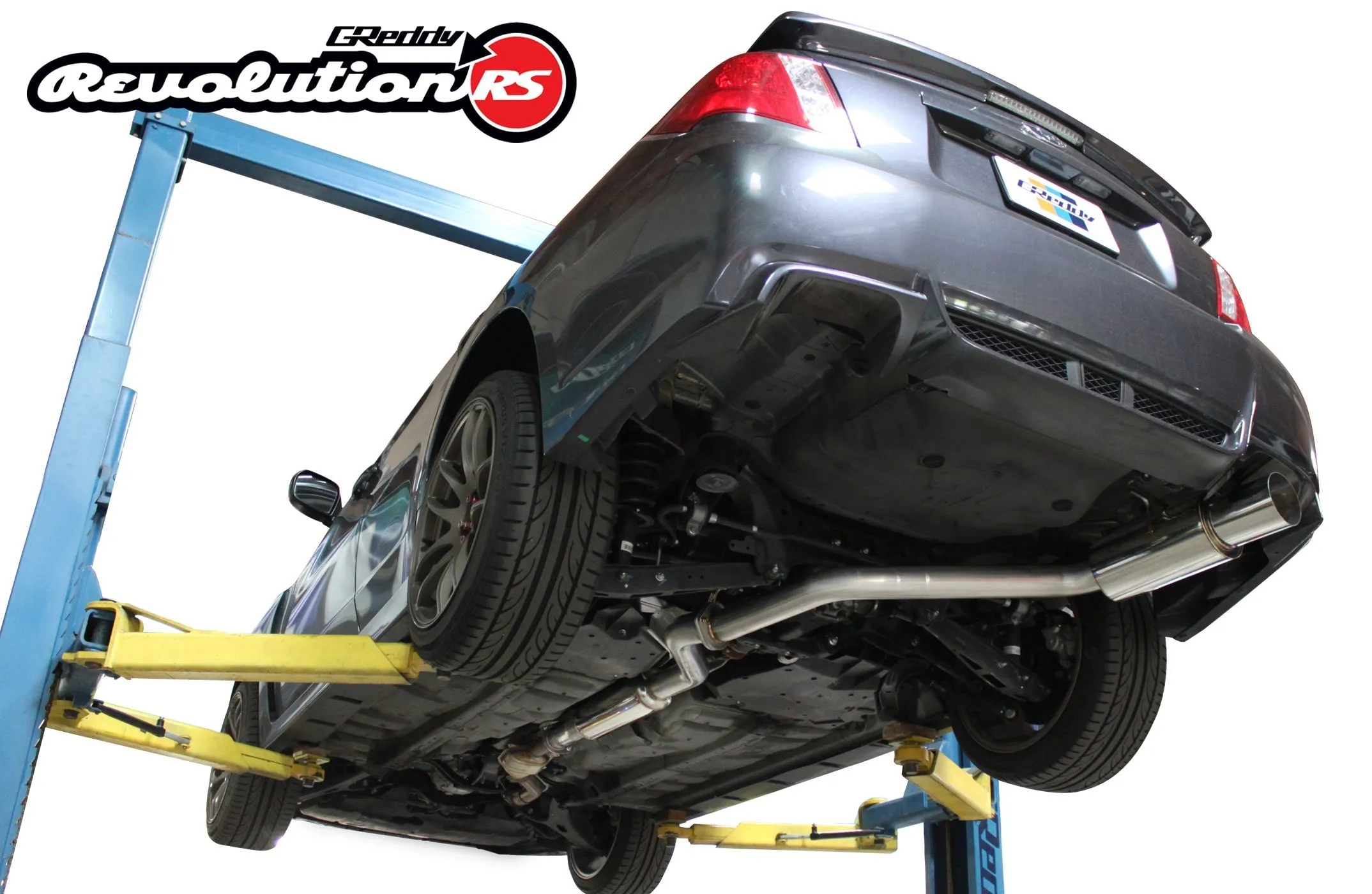

Chassis:  GV8
Engine:  EJ25
Type:   Single sided, cat-back exhaust system
Number of pieces: 2pcs
Piping:    76 mm ( 3.0 in.)
Tip:   115 mm (4.5 ") x L 150mm (5.9")
Gasket(s):    3.0 " oval (qty: 1 included)
Resonator:   Yes
Optional Silencer Available: TBA
Weight:  25.3 lbs
Sound level:  98 dB(a)
HP:   12  hp   TRQ:   31  ft-lbs

* Optional Tip Silencers and Titanium Tips (sold separately)
