Description

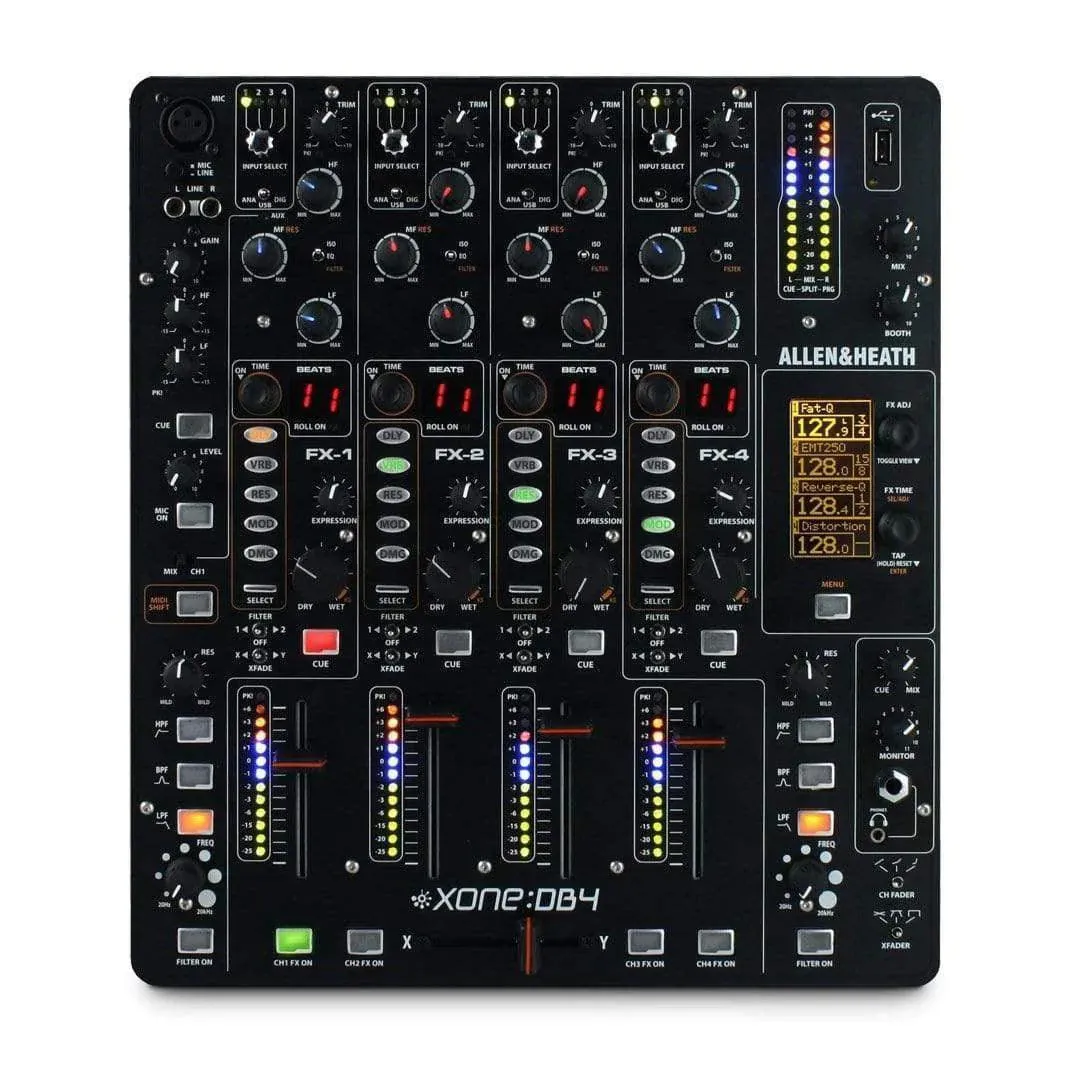

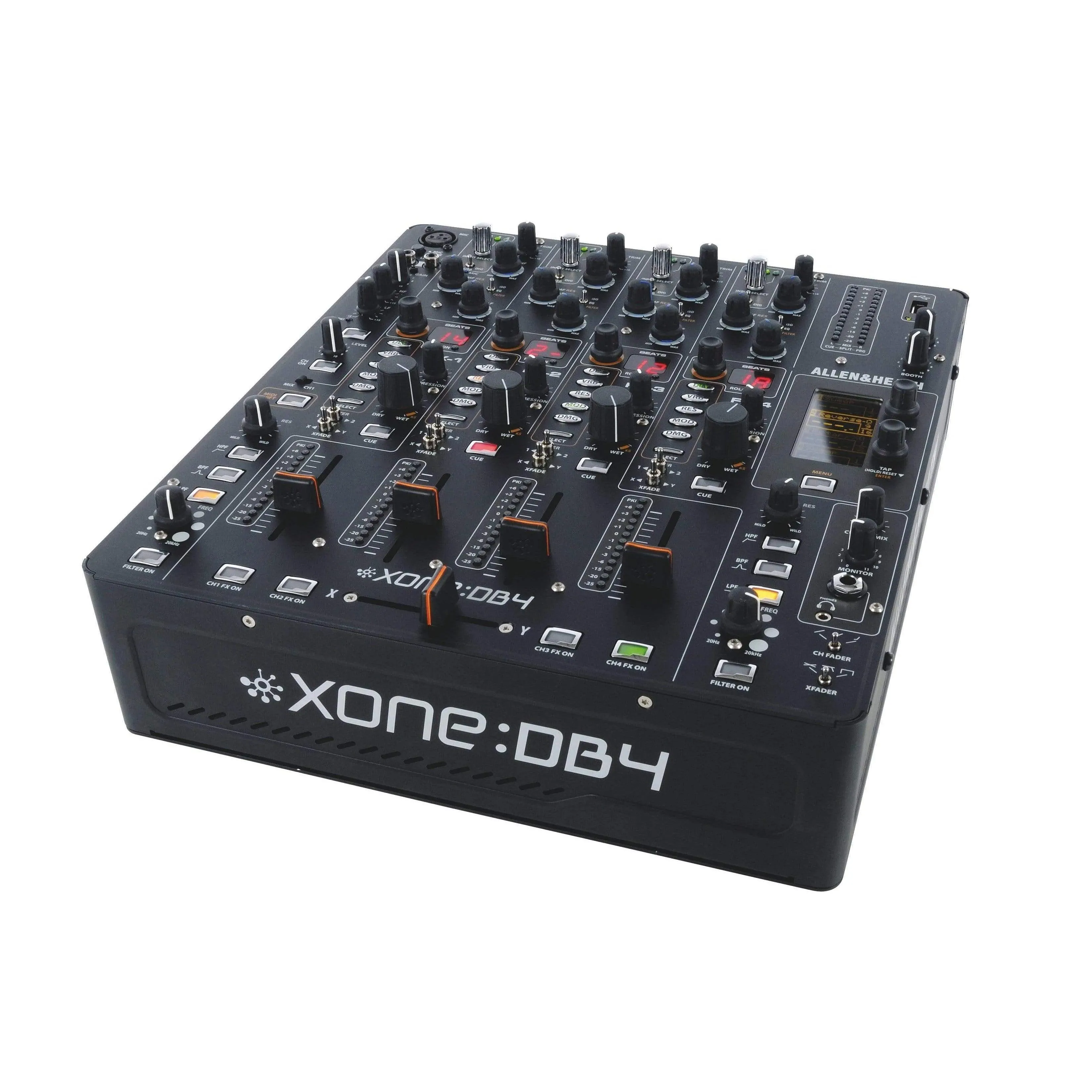

Redefine your DJ rig with an Allen & Heath Xone: DB4 digital DJ mixer! Quite possibly the most advanced 4-channel DJ mixer money can buy, the Allen & Heath Xone: DB4 puts a world of flexible routing, must-have tools, and freakishly powerful effects at your fingertips. Each of the Xone: DB4's channels come loaded a killer DSP effects engine, 3-mode EQ/filter section, tempo syncing looper, and more. And it gets even better. There's also a 16-channel USB 2.0 audio interface and a full-fledged MIDI controller onboard, making it super easy to travel light when you DJ with an Allen & Heath Xone: DB4 mixer.

Features

• Super-versatile 4-channel DJ mixer with effects, looping, and other useful performance tools onboard
• Flexible routing on each channel lets you select from 12 individual stereo inputs

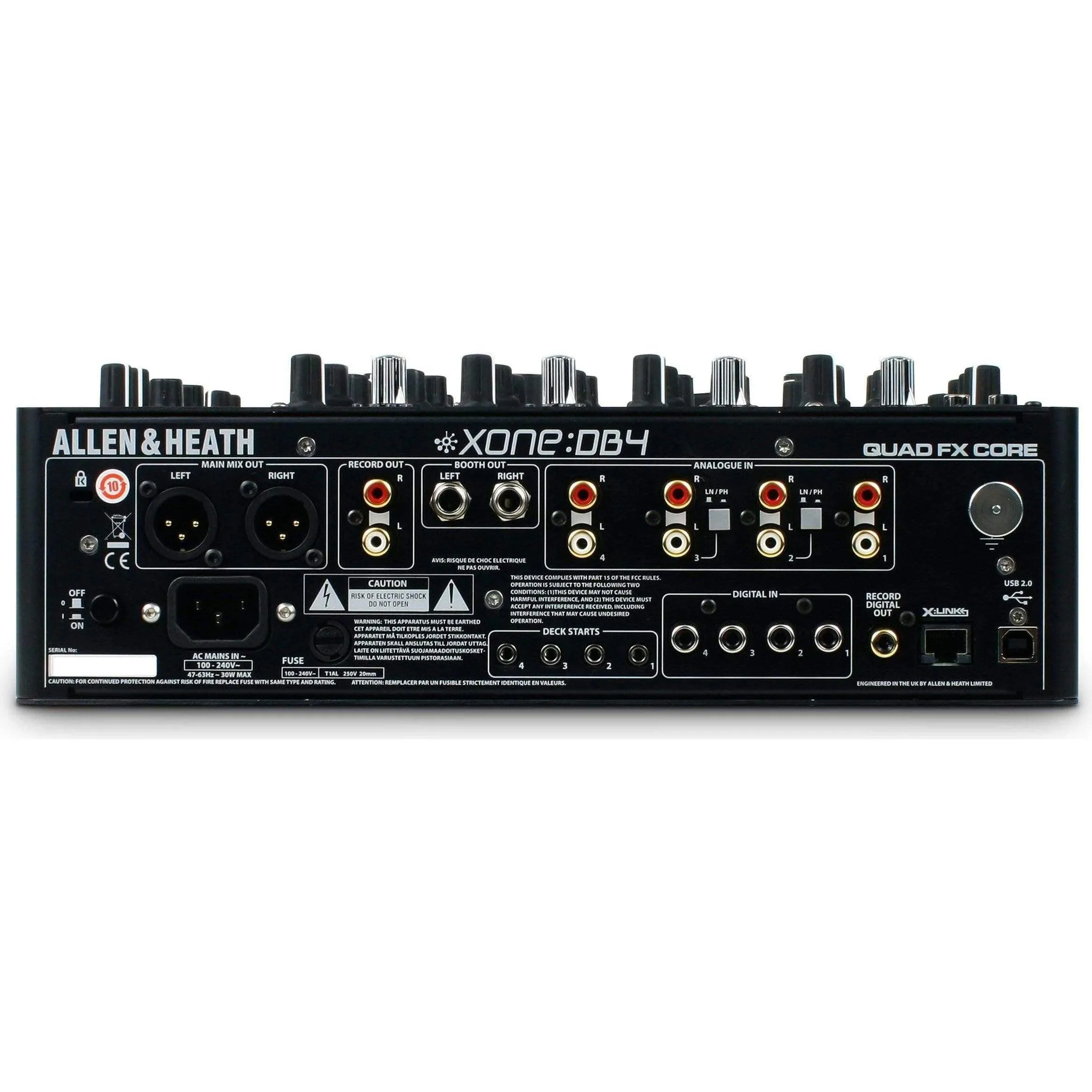

• Inputs include 4 x stereo RCA analog, 4 x stereo S/PDIF digital, and 4 x stereo via USB 2.0
• Available identical inputs on multiple channels let you easily perform on-the-fly remixing and cool changeovers
• Output patchbay makes routing signal to the mains, headphones, and other outputs easy
• High-visibility OLED display lets you perform comfortably in the darkest clubs and on the brightest sunlit stages
• Quad FX Core DSP effects engine gives each channel its own effects bank with delays, reverbs, modulators, resonators, and "damage" distortion effects types
• Includes over 50 effects presets
• Each channel has a built-in looper with selectable loop length from 1/16 beat to 4 bars
• Loopers always record the full 4 bars, allowing you to continuously expanded or shrink your loops
• BPM detection system automatically adjusts all time-related effects and loops to the tempo of your music
• Each main channel includes a 3-band Trimodal EQ
• Channel EQs can be configured with standard asymmetric EQ ( 6/-25dB) bands, Isolator ( 6dB/OFF with a 24dB/octave slope) bands, or as highpass/lowpass filter systems with adjustable resonance
• Xone dual filter system also lets you assign each channel to 1 of 2 additional filters
• Mic/Line input has 2-band EQ, gain, cue, and mix level, and you can route it to channel 1 to add effects
• Built-in 24-bit/96kHz USB 2.0 interface lets you send and receive up to 4 stereo channels to and from your computer
• All controls (except microphone input level and the headphones output level) send MIDI data via USB
• MIDI shift button allows the Loop and FX selection controls to send MIDI data without changing your mixer settings
• User-defined settings such as meter mode, BPM range, USB audio routing scheme, and display brightness can be saved to a USB thumb drive for recall on another Xone: DB4
• Allen & Heath's X: LINK protocol lets you daisy chain MIDI and power with other X: LINK-equipped devices via Ethernet cable
• Heavy-duty yet lightweight aluminium chassis makes transportation easy
• Custom carrying case included
